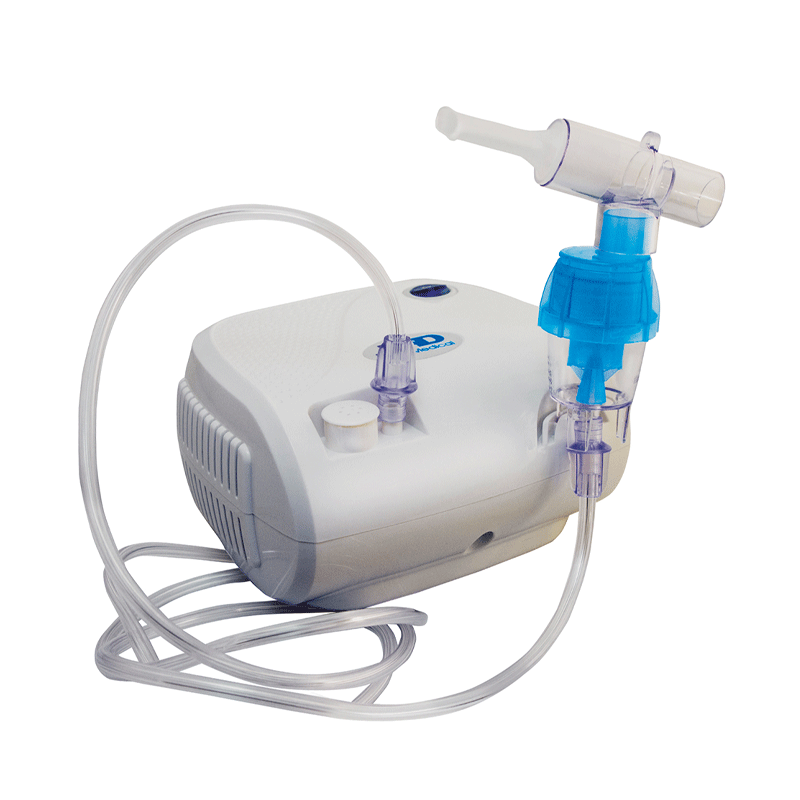

Compact Compressor Nebuliser Ideal for Home Use
Compressor Nebulizer for the conversion of liquid medication into a fine mist for easy inhalation. Suitable for the treatment of asthma, chronic obstructive pulmonary disease (COPD), allergies and other respiratory disorders. The A&D UN-014 is very easy to use and maintain, making it the ideal compressor nebuliser for home use and travel.
Benefits of the A&D UN-014
- Lightweight, compact design
- Simple one button operation
- A range of masks for both children and adults
- Handy carry bag
- Low sound level 55 dB (A)
- No need for breath co-ordination - very little training required
- No small parts which can easily be lost or swallowed by young children
- Easy assembly, clearly marked parts to avoid wrong assembly
- Easy readable medication level
- Easy to clean bio-compatible Polypropylene (PP) material
- Meets hygienic standards (can be boiled and/or autoclaved)
- Easily replaceable consumables: tubing, filters and mouthpiece
- Designed for use with A&D’s range of mouth pieces, from adult to child sizes
Product Information
- Maximum nebuliser solution capacity 6ml
- Operating humidity 10% RH to 90% RH
- Small particle size approx. 3μm（MMAD)
- Nebulisation rate 0.25ml/min
- Aerosol output rate 0.06 ml/min (2ml,1%NaF)
- 5 year warranty
- High respirable fractilon-ideal drug delivery - good particle size (MMAD
Cleaning 1. Turn the power off and unplug from the wall outlet. 2. Remove the tube from the air inlet. 3. TO CLEAN: Disassemble the mouthpiece, nebulizer cup, chamber and baffle, and wash these items in hot water with dish-washing detergent. Rinse these items thoroughly to remove the detergent and air dry. 4. TO DISINFECT: Mix one part of white vinegar with 3 parts hot water in a clean container. Submerge mouthpiece, nebulizer cup, chamber and baffle for half an hour in the solution. Remove from solution and let air dry. 5. There is no need to clean the tube. If necessary wipe the surface regularly. Note: Replace the nebulizer accessories including adult mask, child mask, mouthpiece, nebulizer cup, Air tube after using 6 months. Replace the filter every 30 days or if the filter turns grey. CAUTION: The jet nebulizer must be changed if it becomes clogged. CAUTION: The nebulizer and accessories must not be boiled. MAINTENANCE 1. The air compressor filter should be replaced when it turns gray. Additional filters can be procured from your dealer. 2. Only authorized personnel shall make repairs to this product. CAUTION: The nebulizer may be damaged if used with a dirty filter or if the filter is replaced by some other material such as cotton. Do NOT operate without a filter.
